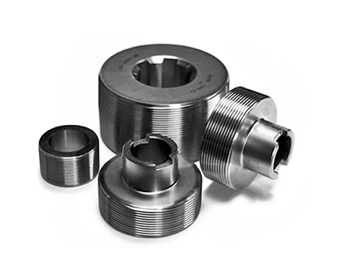

Thread Rolling Attachments

CJWinter manufactures a wide range of attachment thread rolls. Our quality and performance is unsurpassed, and 80% of our thread rolls ship within 24 hours.

We produce rolls to fit not only our own Winter and Davenport attachments, but also all major manufacturers, including Landis, Fette, Reed, Salvo, and Detroit. Click on the thread roll types below to view model and manufacturer information.

Our outstanding Engineering and Inside Sales Staff are ready to provide solutions to your most complicated applications. Don’t see the solution you need? Request a custom tool with us today.

Attachment Rolls for Straight Threads

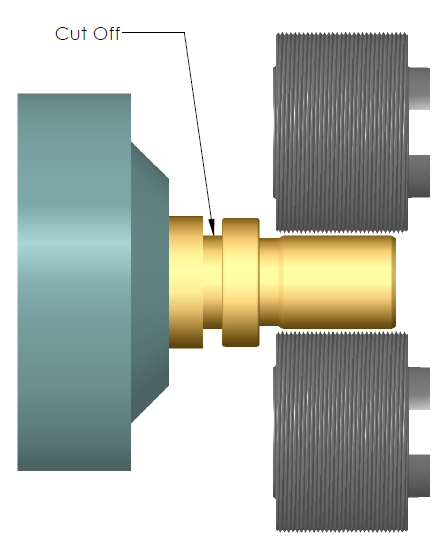

WC-1 Thread Rolling Attachment

WC-1

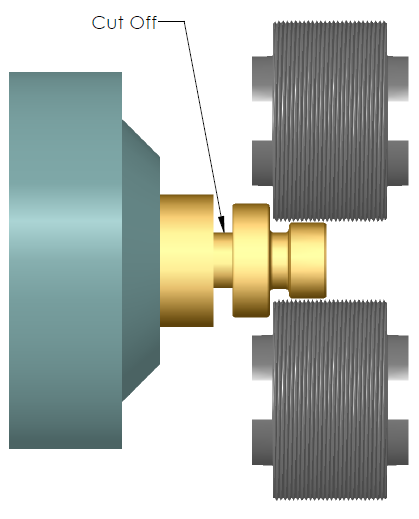

WCR-1 Thread Rolling Attachment

WCR-1

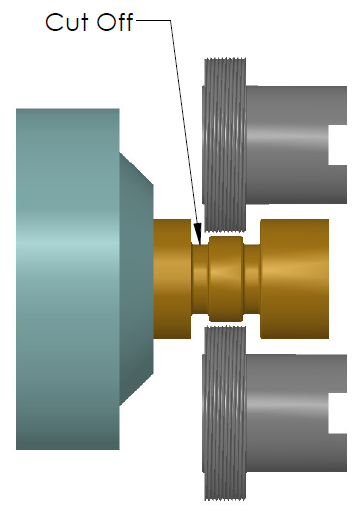

WC-2 Thread Rolling Attachment

WC-2

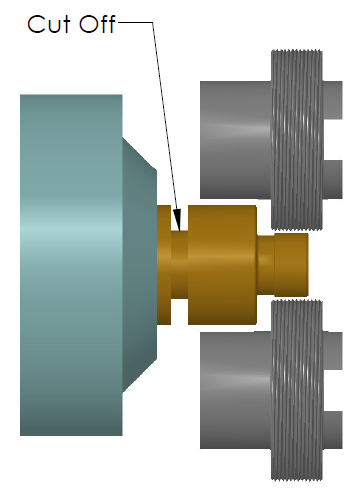

WC-3 Thread Rolling Attachment

WC-3

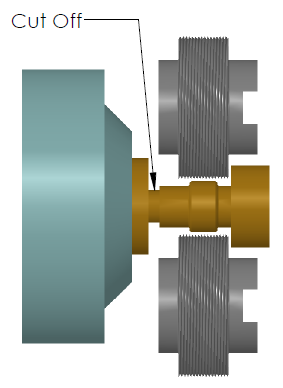

WC-4 Thread Roll Attachment

WC-4

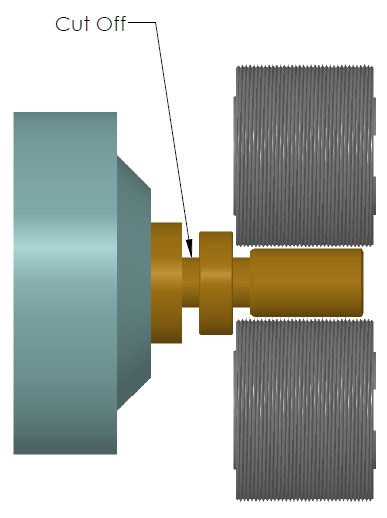

WD-1 Thread Roll Attachment

WD-1

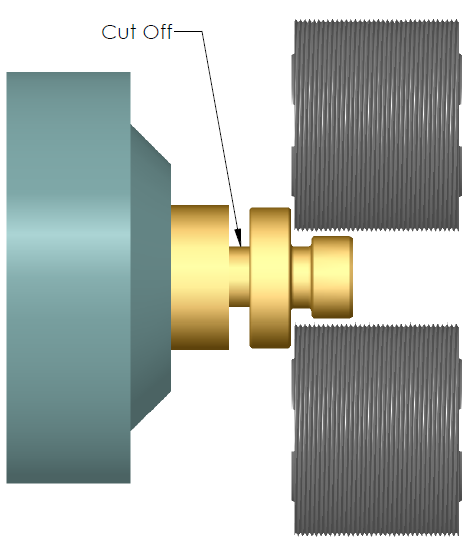

WDR-1 Thread Roll Attachment

WDR-1

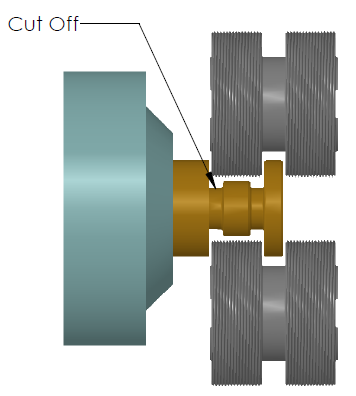

WDR-5 Thread Roll Attachment

WDR-5

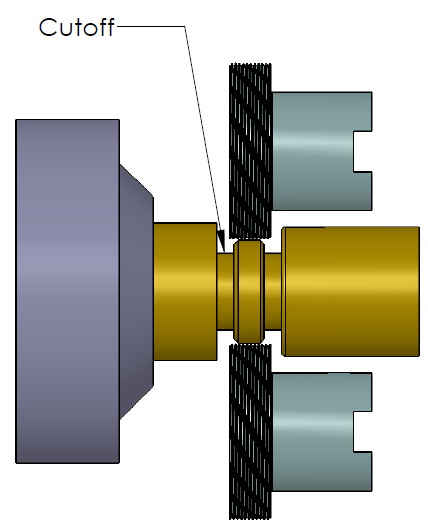

WH-2 Thread Roll Attachment

WH-2

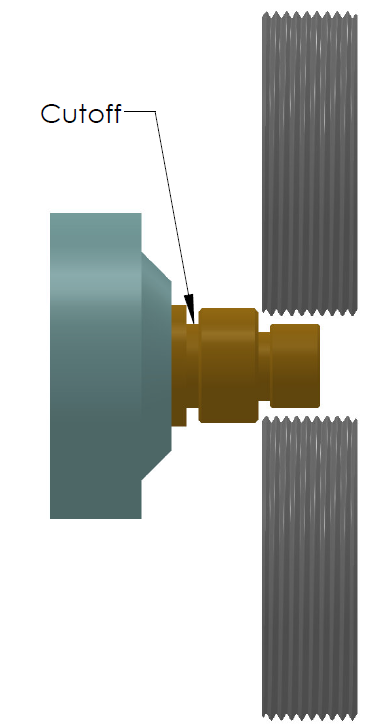

WOBR-1 Thread Roll Attachment

WOBR-1

Attachment Rolls for Taper Pipe Threads

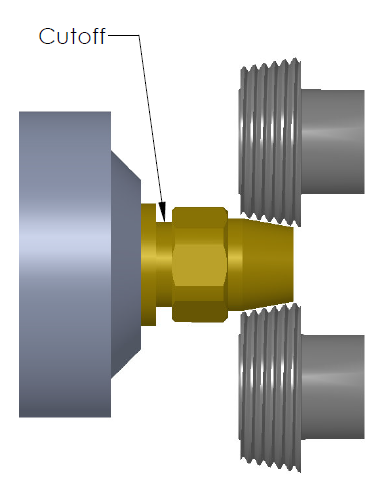

WOBR-Q-2 Taper Pipe Attachment

WOBR-Q2

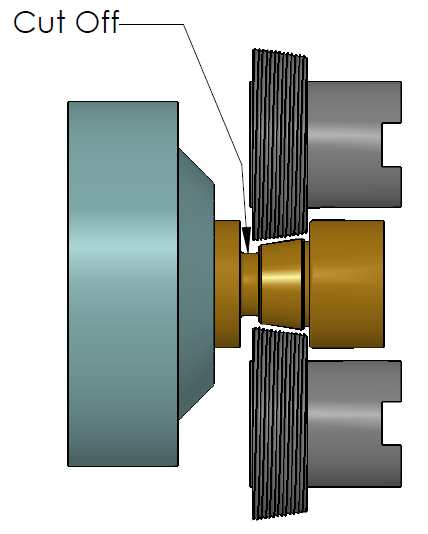

WK-2

WK-2

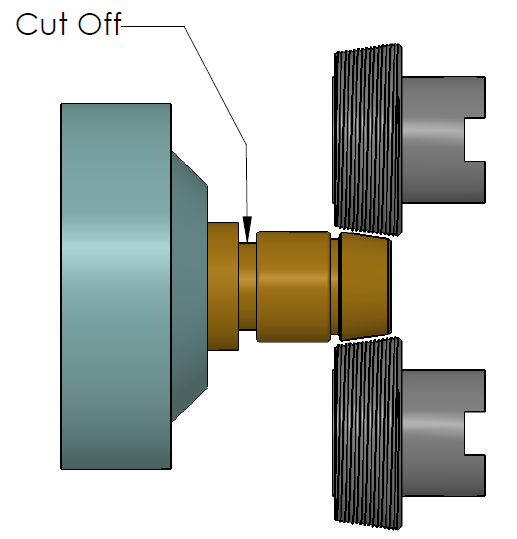

WQ-2 Taper Pipe Attachment

WQ-2

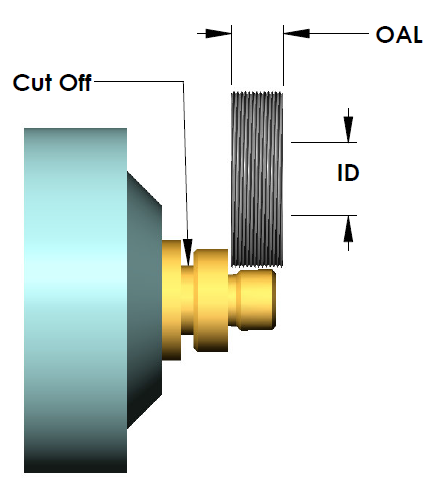

Bump Rolls for WF-1 and WF-2

WF-1

WF-1

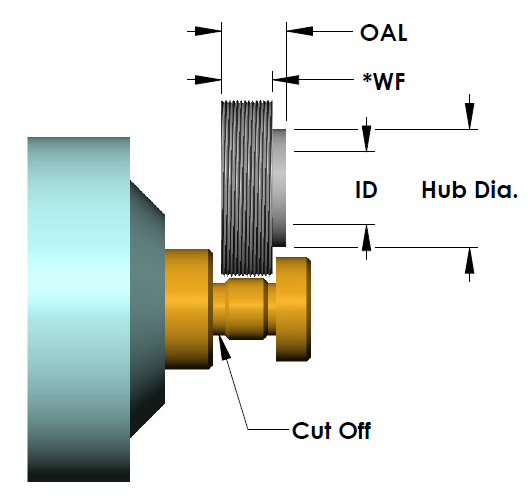

WF-2 Taper Pipe Attachment

WF-2

Other Attachments

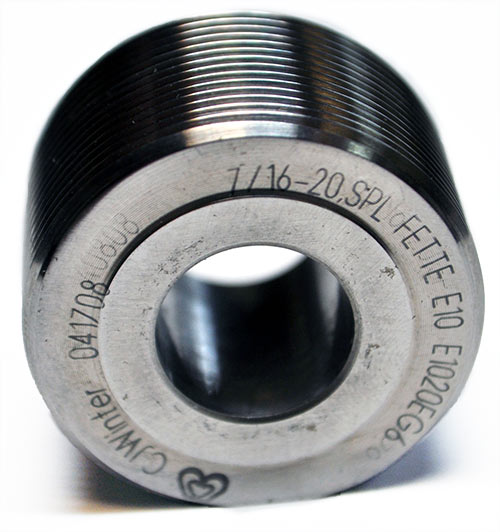

Fette E-Style Thread Attachment Rolls

Fette E-Style Thread Rolls

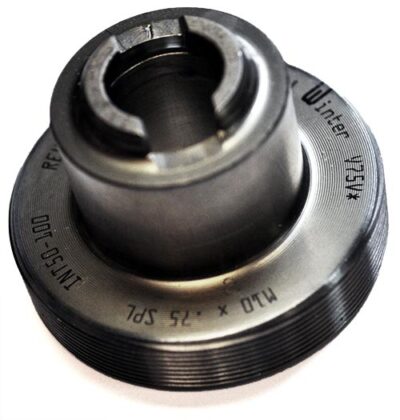

Fette T-Style Thread Rolls

Fette T-Style Thread Rolls

End Rolling Attachments

End Rolling Attachments

How to Order Thread Rolls

When placing an order or requesting a quote, please have the following information available:
  • Make and model of thread rolling attachment
  • Style of thread roll (i.e. D-1, DR-1, C-1, etc.)
  • Size and pitch of thread to be rolled, including dimensional tolerances if other than standard
  • Length of thread on part
  • Material to be rolled
  • Is thread next to collet or cut off side
  • Print of part to be rolled

Note:

  • Special rolls may require a sample part or more detailed specifications
  • Some rolls require a special calculation to figure the work face on the roll
