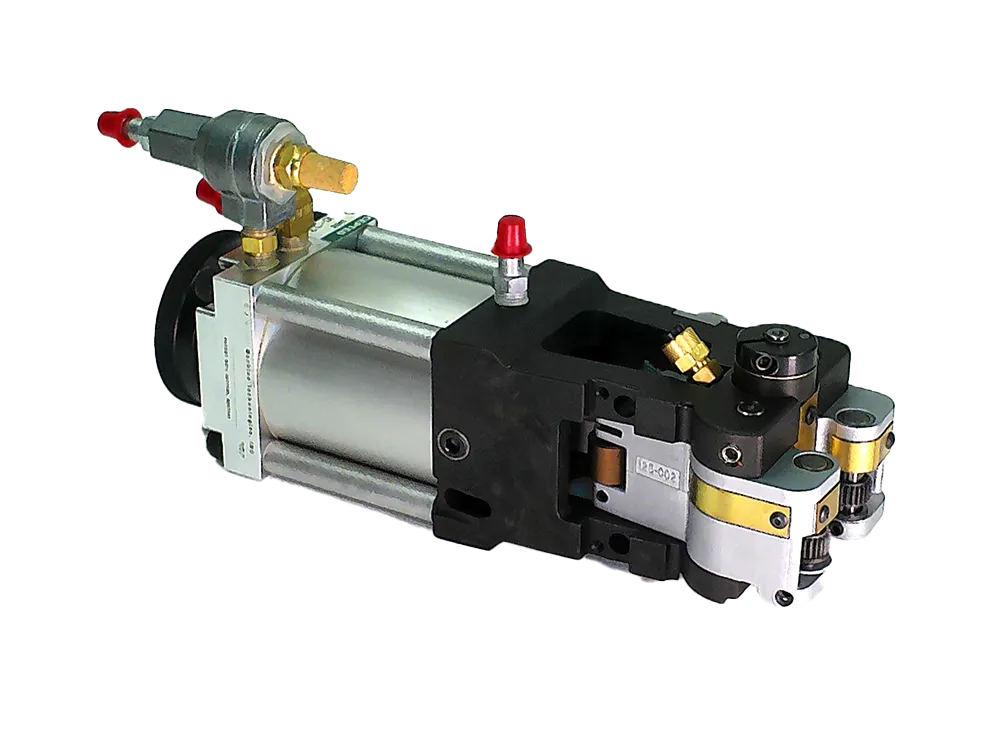

| 125-SA | 125-SA-1 | 126-SA | 126-SA-1 | |
|---|---|---|---|---|
| Brown & Sharpe |
x
|
x
|
||
| Cono-Matic | ||||
| Euroturn |
x
|
x
|
||
| Davenport |
x
|
x
|
||
| Gildemeister |
x
|
x
|
||
| Greenlee | ||||
| Hardinge |
x
|
x
|
||
| Hydromat | ||||
| Index |
x
|
x
|
||
| Mitsubishi | ||||
| Mori-Say |
x
|
x
|
||
| National ACME |
x
|
x
|
||
| New Britain |
x
|
x
|
||
| Schutte |
x
|
x
|
||
| Traub |
x
|
x
|
||
| Tornos Bechler |
x
|
x
|
||
| Warner Swasey | ||||
| Wickman |
x
|
x
|
||
| ZPS |
x
|
x
|
| 0-80 to ½-32 | 1/16-27 NPT to ¼-18 NPT | M1.4 x 0.3 to M12 x 1.75 |
| 1/16-28 BSPP to 1/4-19 BSPP | 1/16-28 BSPT to 1/4-19 BSPT | 1/8-27 NPSM to 1/4-18 NPSM |
| A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|
| 125-SA | 3.120 (MAX) | 1.000 | 2.250 NOM | 1/4-20 T-BOLT | 8.875 | 8.320 | 3.000 |
| 125-SA-1 | 3.120 (MAX) | 1.180 | 2.750 NOM | M8 x 1.25 T-BOLT | 8.875 | 8.320 | 3.000 |
| 126-SA | 3.120 (MAX) | 1.000 | 2.250 NOM | 1/4-20 T-BOLT | 12.20 | 11.570 | 3.300 |
| 126-SA-1 | 2.740 (MAX) | 1.180 | 2.750 NOM | M8 x 1.25 T-BOLT | 12.20 | 11.570 | 3.300 |
