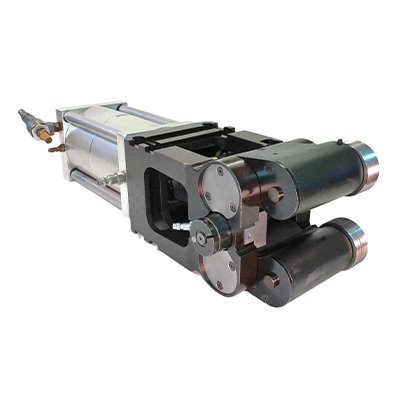

The CJWinter air-powered outboard radial in-feed thread rolling attachment incorporates many of the same proven features currently found on the “Standard” and “Heavy Duty” CJWinter Thread Rolling Attachments.
The outboard type attachment is designed to roll threads on parts that are usually held where shoulder or stock clearances are critical.

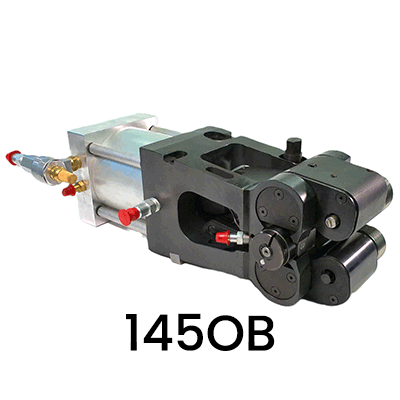

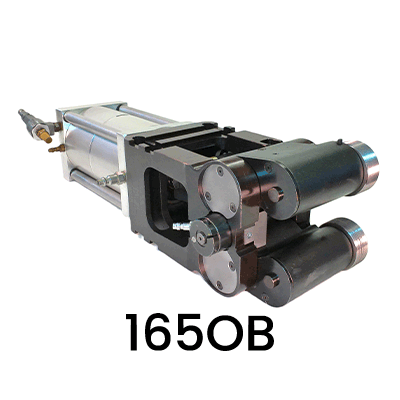

| 145-OB | 8-32 to 3/4-27 | 1/16-27 NPT to 3/8-18 NPT | M5 x 0.5 to M18 x 2.5 |
| 145-OB | 1/16-28 BSPP to 3/8-19 BSPP | 1/16-28 BSPT to 3/8-19 BSPT | 1/8-27 NPSM to 3/8-18 NPSM |
| 165-OB | 5/16-20 to 1 5/16-32 | 1/16-27 NPT to 3/4-14 NPT | M6 x 1.0 to M33 x 1.5 |
| 165-OB | 1/16-28 BSPP to 3/4-14 BSPP | 1/16-28 BSPT to 3/4-14 BSPT | 1/8-27 NPSM to 3/4-14 NPSM |

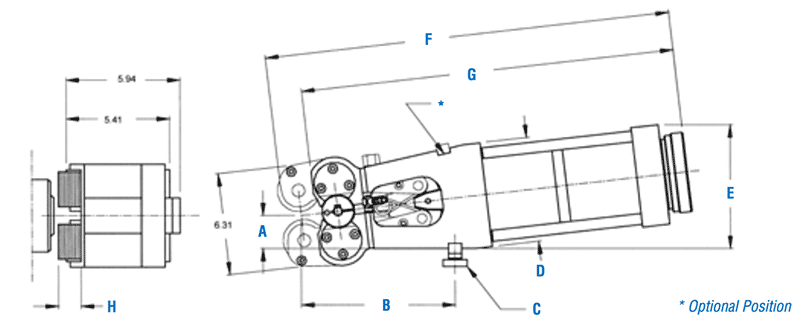

| A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|
| 145-OB | 1.312 | 6.09 NOM | 3/8-16 T-BOLT | 4.180 | 4.620 | 13.000 | 11.750 | 0.625 |
| 165-OB | 2.250 | 5.812 | 5/8 T-KEY | 4.500 | 4.399 | 18.060 | 16.500 | .750 |
| 165-OB-1 | 2.125 | 7.250 | ½-13 T-BOLT | 4.940 | 5.060 | 18.060 | 16.500 | .750 |
| 165-OB-2 | 2.000 | 7.062 | ½-13 T-BOLT | 4.940 | 5.060 | 18.060 | 16.500 | .750 |
