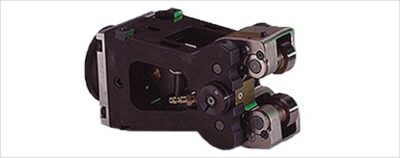

151-SA Tangential Series
Home
Products
Tangential
151-SA Tangential Series
Request Quote
Availability
Capacities
Dimensions
Get this tool in Pneumatic Style
151-SA Tangential Series Availability
151-SA
152-SA
Brown & Sharpe
x
x
Cono-Matic
Euroturn
x
x
Davenport
Gildemeister
x
x
Green Lee
Hardinge
x
x
Hydromat
Index
x
x
Mitsubishi
x
x
Mori-Say
x
x
National ACME
x
x
New Britain
x
x
Schutte
x
x
Traub
Tornos Bechler
x
x
Warner Swasey
x
x
Wickman
x
x
ZPS
x
x
151-SA Tangential Series Capacities
0-80 to 7/8-32
1/16-27 NPT to ½-14 NPT
M1.4 x 0.3 to
M22 x 2.5
1/16-28 BSPP to
½-14 BSPP
1/16-28 BSPT to
½-14 BSPT
1/8-27 NPSM to
½-14 NPSM
151-SA Tangential Series Dimensions
A
B
C
D
E
151-SA
12.130
11.000
4.460
4.750
5.850
152-SA
15.200
14.070
4.460
4.750
5.850
