| 160-SA 162-SA |
160-SA-1 162-SA-1 |
160-SA-2 162-SA-2 |
160-SA-3 162-SA-3 |
|
|---|---|---|---|---|
| Brown & Sharpe |
x
|
|||
| Cono-Matic | ||||
| Euroturn |
x
|
|||
| Davenport | ||||
| Gildemeister |
x
|
|||
| Greenlee | ||||
| Hardinge | ||||
| Hydromat | ||||
| Index |
x
|
|||
| Mitsubishi | ||||
| Mori-Say |
x
|
|||
| National ACME |
x
|
|||
| New Britain |
x
|
|||
| Schutte |
x
|
|||
| Traub | ||||
| Tornos Bechler |
x
|
|||
| Warner Swasey |
x
|
|||
| Wickman |
x
|
|||
| ZPS |
x
|
| 10-32 to 1 7/8-18 | 1/8-27 NPT to 1 ½-11 ½ NPT | M6 x 1.0 to M45 x 3.0 |
| 1/16-28 BSPP to 1 ½-11 BSPP |
1/16-28 BSPT to 1 ½-11 BSPT |
1/8-27 NPSM to 1 ½-11 ½ NPSM |

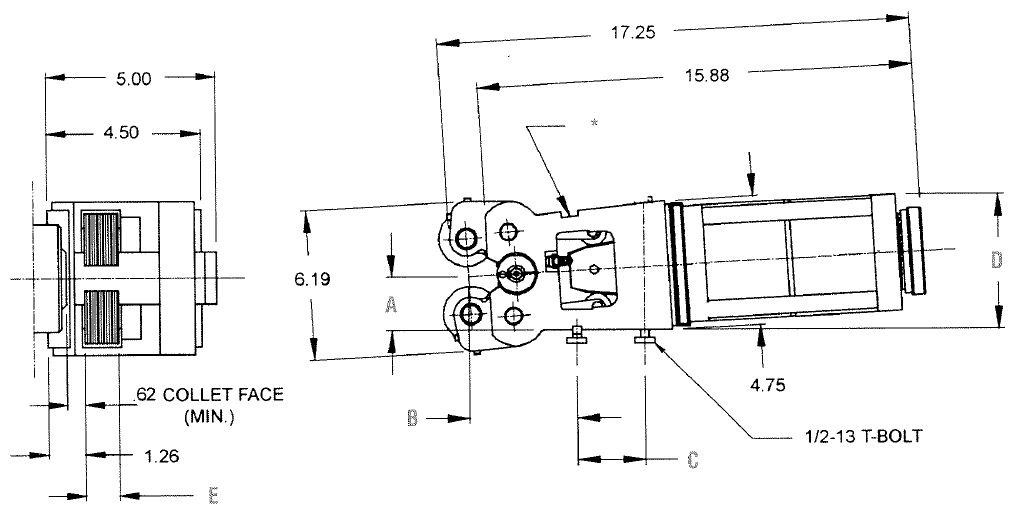

| A | B | C | D | E | |
|---|---|---|---|---|---|
| 160-SA | 2.250 | 3.690 NOM | 2.000 MIN 3.000 MAX |
4.500 | 1.656 |
| 160-SA-1 | 2.125 | 3.690 NOM | 2.500 | 4.940 | 1.656 |
| 160-SA-2 | 2.000 | 4.000 NOM | 2.060 | 4.940 | 1.656 |
| 160-SA-3 | 2.000 | 4.000 NOM | 2.300 | 4.940 | 1.656 |

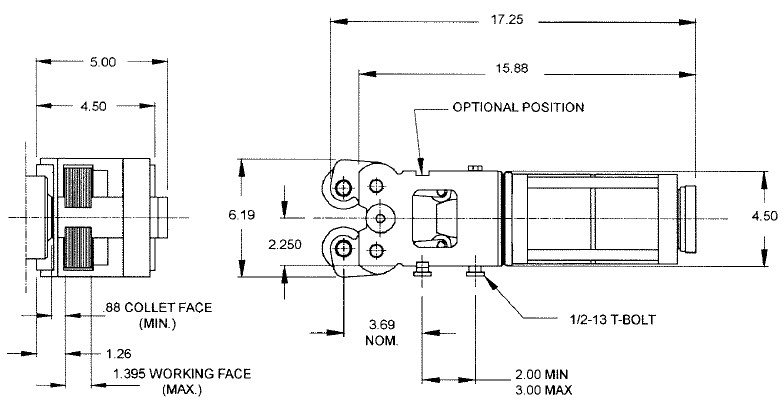

| A | B | C | D | E | |
| 162-SA | 2.250 | 3.690 NOM | 2.000 MIN 3.000 MAX |
4.500 | 1.395 |
| 162-SA-1 | 2.125 | 3.690 NOM | 2.500 | 4.940 | 1.395 |
| 162-SA-2 | 2.000 | 4.000 NOM | 2.060 | 4.940 | 1.395 |
| 162-SA-3 | 2.000 | 4.000 NOM | 2.300 | 4.940 | 1.395 |
