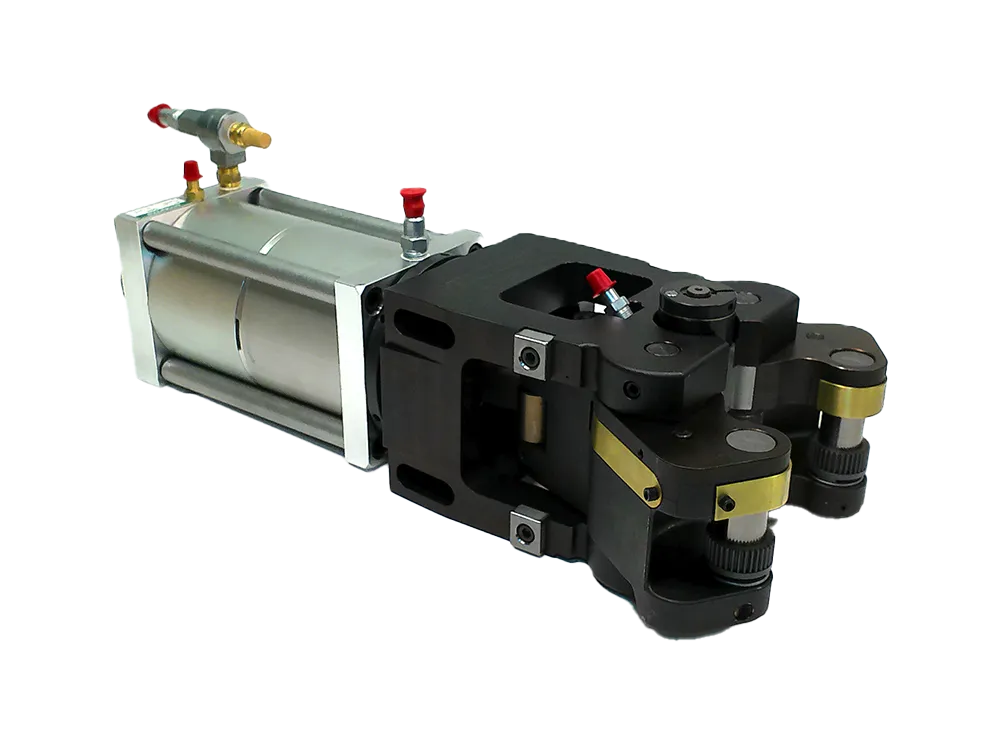

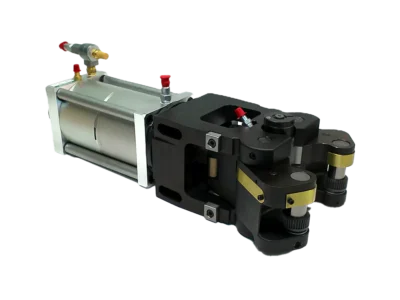

170/172-SA Pneumatic Series

170/172-SA Pneumatic Series

Get this tool in Tangential Style

170/172-SA Pneumatic Series Availability

	170-SA 172-SA 173-SA	170-SA-1 172-SA-1 173-SA-1	170-SA-2 172-SA-2 173-SA-2
Brown & Sharpe
Cono-Matic
Euroturn
Davenport
Gildemeister
Greenlee
Hardinge
Hydromat
Index
Mitsubishi
Mori-Say
National ACME			x
New Britain	x
Schutte
Traub
Tornos Bechler
Warner Swasey		x
Wickman		x
ZPS

170/172-SA Pneumatic Series Capacities

5/16-18 to 2 1/4-20	½-14 NPT to 1 ½-11 ½ NPT	M10 x 1.5 to M56 x 3.0
1/16-28 BSPP to 1 ½-11 BSPP	1/16-28 BSPT to 1 ½-11 BSPT	1/8-27 NPSM to 1 ½-11 ½ NPSM

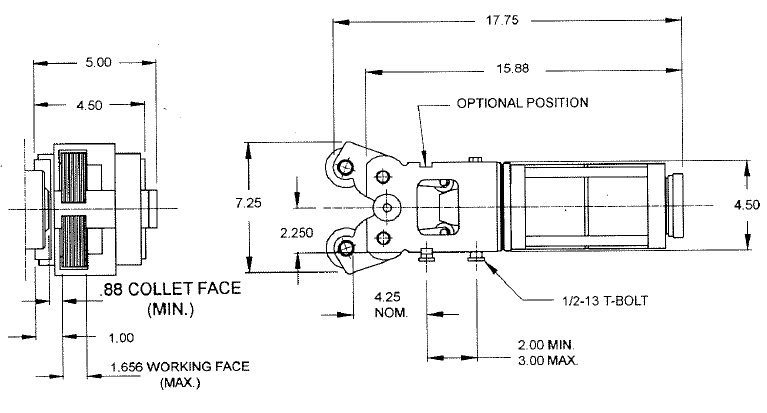

170/172-SA Pneumatic Series Dimensions

170-SA Series

	A	B	C	D	E	F	G
170-SA	2.250	4.250 NOM	2.000 MIN 3.000 MAX	17.750	15.880	4.500	1.656
170-SA-1	2.125	4.250 NOM	2.500	17.750	15.880	4.940	1.656
170-SA-2	2.000	4.560 NOM	2.060	17.750	15.880	4.940	1.656

Dimensions

172-SA Series

	A	B	C	D	E	F	G
172-SA	2.250	4.250 NOM	2.000 MIN 3.000 MAX	17.750	15.880	4.940	1.395
172-SA-1	2.125	4.250 NOM	2.500	17.750	15.880	4.940	1.395
172-SA-2	2.000	4.250 NOM	2.060	17.750	15.880	4.940	1.395
173-SA	2.250	4.250 NOM	2.000 MIN 3.000 MAX	20.940	19.070	4.500	1.395
173-SA-1	2.125	4.250 NOM	2.500	20.940	19.070	5.280	1.395
173-SA-2	2.000	4.560 NOM	2.060	20.940	19.070	5.130	1.395
