Range of specifications include:

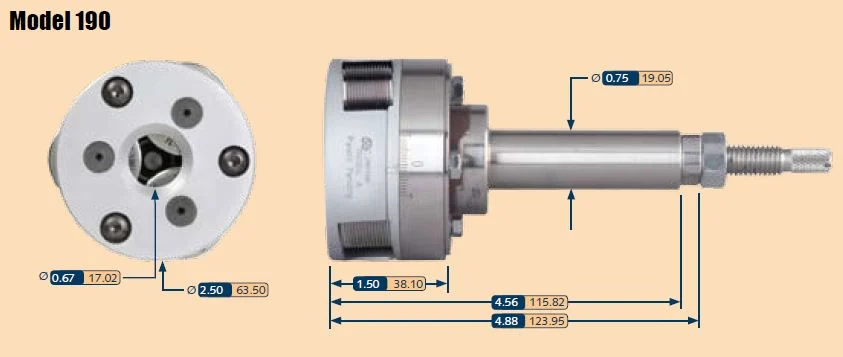

View 190 ER Series size specifications for both Metric ISO Threads and Unified Threads in the tables below. For all sizes, .6L, 1L and 2L are available.
 |
Metric ISO Threads | Unified Threads |
| Size | Size | |
| M 6 x 1 | 1/4-20 | |
| M 6 x 0.755 | 1/4-24 | |
| M 7 x 1 | 1/4-27 | |
| M 7 x 0.75 | 1/4-28 | |
| M 8 x 1.25 | 1/4-32 | |
| M 8 x 1 | 5/16-18 | |
| M 9 x 1.25 | 5/16-20 | |
| M 9 x 1 | 5/16-24 | |
| M 10 x 1.5 | 5/16-28 | |
| M 10 x 1.25 | 3/8-16 | |
| M 10 x 1 | 3/8-18 | |
| 3/8-20 | ||
| 3/8-24 | ||
| 7/16-14 | ||
| 7/16-16 | ||
| 7/16-18 | ||
| 7/16-20 |
